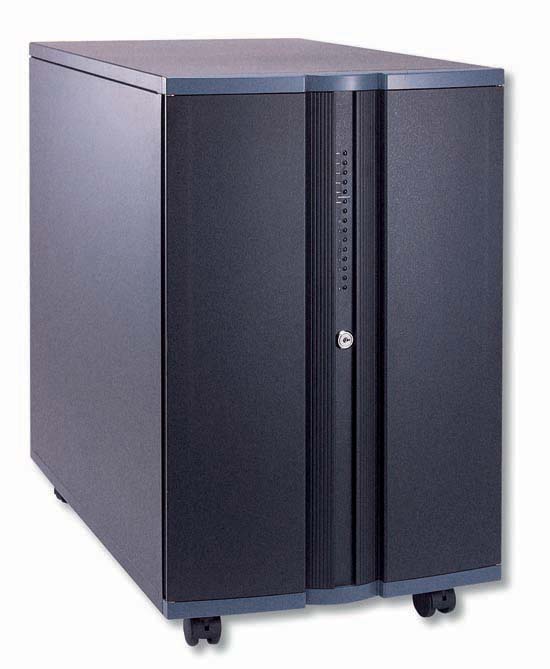

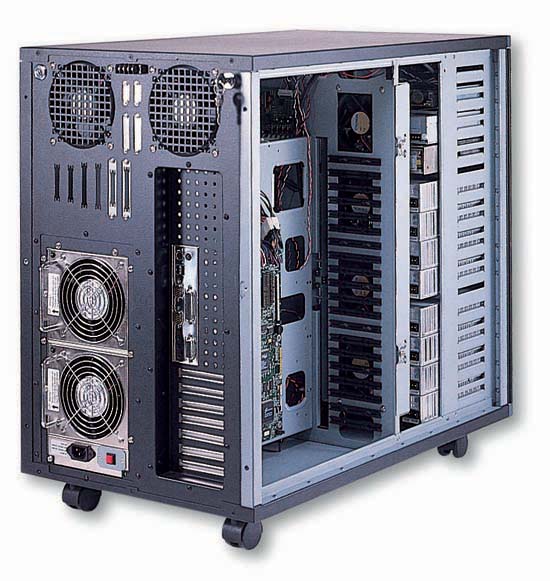

Server / RAID Case or 19" Rack Mounted
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black, Beige, or Custom Design
System Boards: Duel Xeon, Pentium 4, Dual Pentium III based boards
Motherboard Size: Supports ATX M/B (Max. to 16" x 13") or 14-slots Passive Backplane
Drive Bays: 23 x 5.25" Open Bay
Power Supply: (Rear Chassis Installation) PS/2 Size Single or Redundant Power Supply (Optional)
Cooling Units: 8 x 9cm (51CFM) Heavy Duty Ball-Bearing Fans, 2 x 12cm (108CFM) Heavy Duty Ball-Bearing Fans
Thermal Management Card: Installed
Locks: Lockable Security Access and Lockable Casters
Expansion Slot: 7-slots or 14-slots Passive Backplane
Indicators: LEDs for Power, HDDs, Fans, and Temperature Activity/Status
Buttons: Power On/Off & System Reset
Dimensions: 410(W) x 600(H) x 710(D) mm (16.2" x 23.6" x 28")
Weight: 44 kgs / 97 lbs
Cu. ft.: 12.2
Carton Size: 54.8 x 73.6 x 85.7(Cm) (21.6" x 29" x 33.7")
Product Applications: Network Storage, Optical or Tape Storage Duplicator
