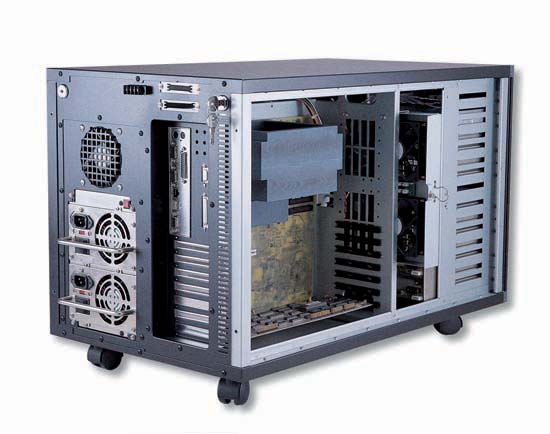

Server / RAID Case or 19" Rack Mounted
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black or Custom Design
System Boards: Duel Xeon, Pentium 4, Dual Pentium III based boards
Motherboard Size: Supports ATX M/B (Max. to 12" x 13") or 14-slots Passive Backplane
Drive Bays: 15 x 5.25" Open Bays
Power Supply: (Rear Chassis Installation) PS/2 Size Single or Redundant Power Supply (Optional)
Cooling Units: 5 x 9cm (51CFM)Heavy Duty Ball Bearing Fans
Thermal Management Card: Installed
Locks: Lockable Security Access and Lockable Casters
Expansion Slot: 7-slots or 14-slots Passive Backplane
Indicators: LEDs for Power, HDDs, Fans, and Temperature Activity/Status
Buttons: Power On/Off & System Reset
Dimensions: 410(W) x 416(H) x 710(D) mm (16.2" x 16.4" x 28")
Weight: 33 kgs / 72.6 lbs
Cu. ft.: 9.46
Carton Size: 56 x 85.5 x 56(Cm) (22" x 33.7" x 22")
Product Applications: Network Storage, Optical or Tape Storage Duplicator
